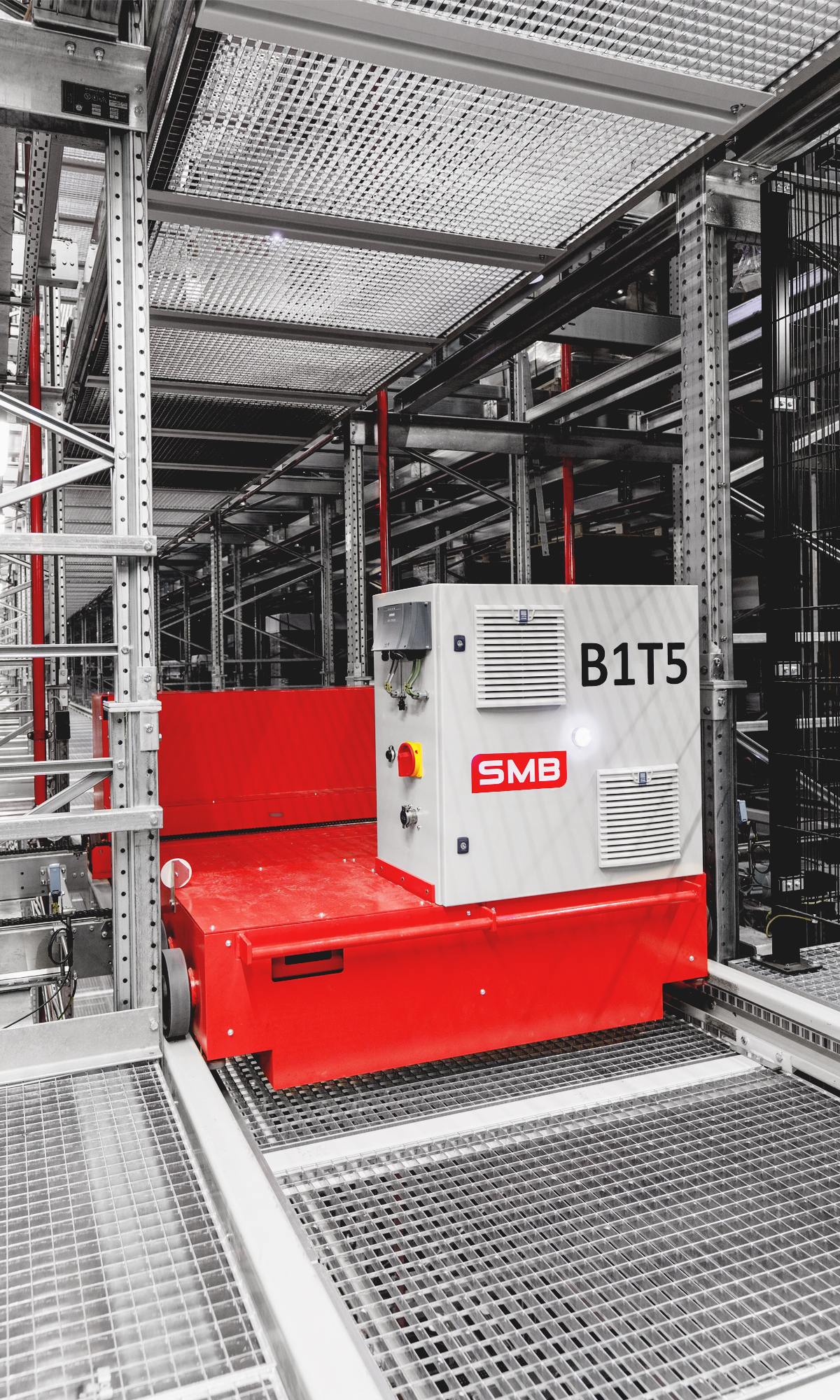

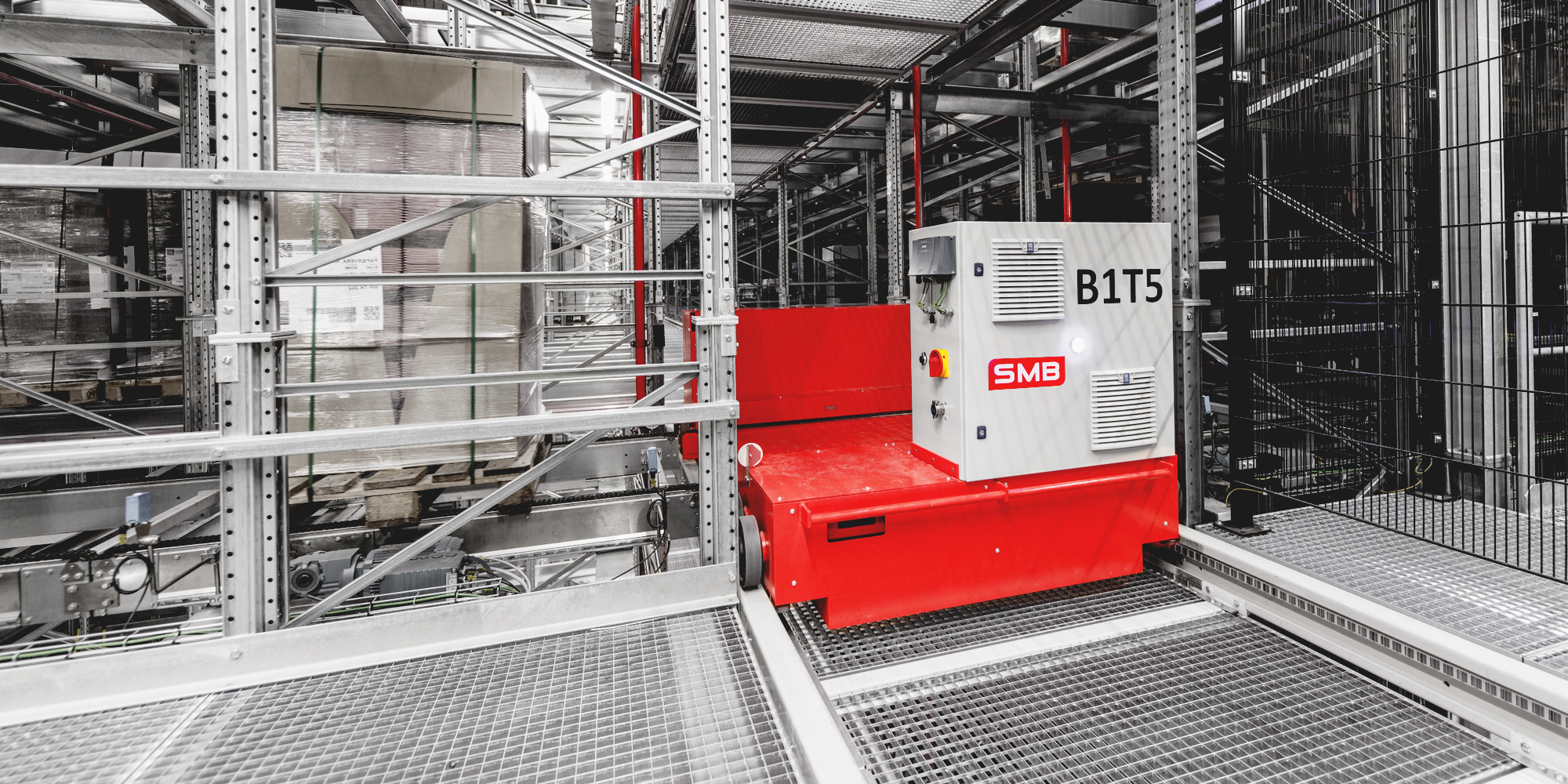

Truck-Shuttle-System
Compact solution for automated pallet warehouses

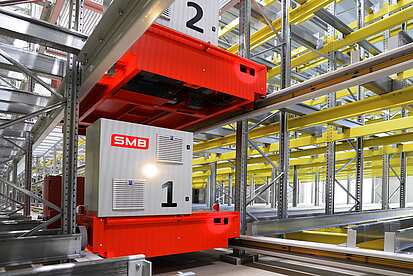

Truck shuttle system for maximum performance
Many operators of large pallet warehouses reach the performance limits of conventional storage and retrieval machines - especially with high storage density, multiple levels and mixed pallet formats. This is why we have developed the truck shuttle system with cable-connected pallet shuttle: a scalable, high-performance solution for multi-deep storage on up to 20 levels. So that you no longer waste storage space or slow down processes, but can finally access every pallet storage location efficiently, quickly and fully automatically.

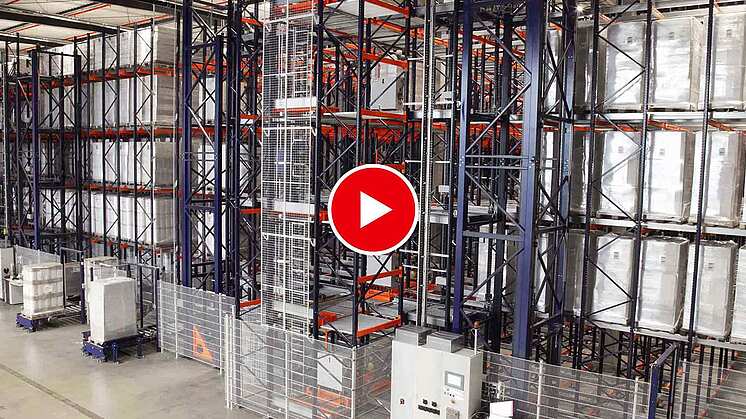

Video: Truck Shuttle functional sequences
A storage system - perfectly matched to high-performance pallet logistics.
Learn more about our truck shuttles for automated pallet warehouses.
Compact Storage System Product Sheet
Product Information
- storage height: 5-40 m, up to 20 levels
- channel depth: up to 21 m, multiple depths
- pallet formats: Euro, industrial, drum
- payload: up to 1,500 kg
- pallet sag: 25 mm
- throughput per level: 25-35 single cycles/h
- storage and retrieval with two vertical conveyors: up to 160-180 pallets/h
- energy supply: truck via conductor rail, shuttle via trailing cable
- speed: truck 3 m/s, shuttle 0.5 m/s
- storage availability between 95 and 98 % is possible

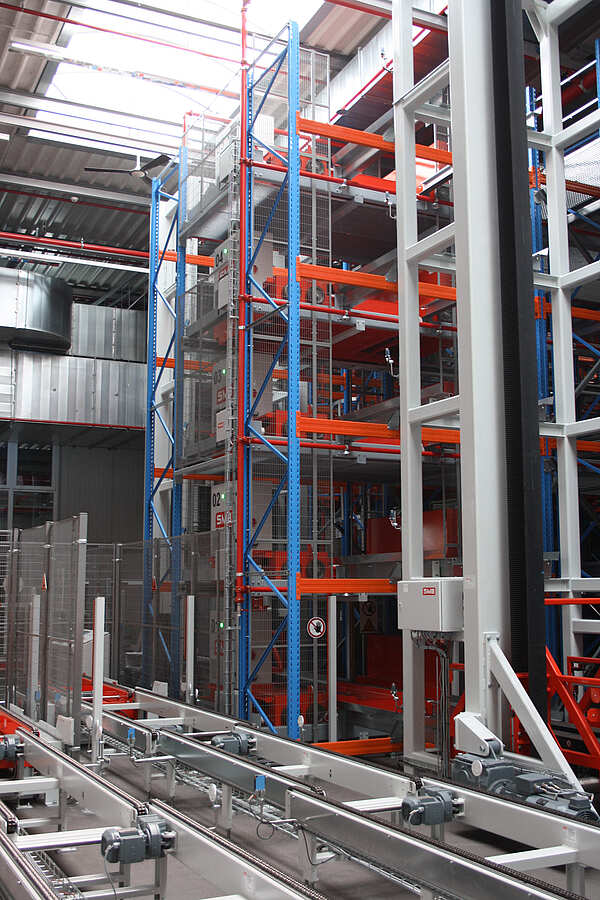

Automation on up to 20 storage levels
In modern high-bay warehouses, every cubic meter counts - and this is exactly where truck shuttle technology comes in to achieve maximum storage density and throughput. The system is fully software-controlled and works autonomously. Sensors on the shuttle and truck ensure precise positioning and safety (e.g. stop in the event of obstacles). The overall result is an efficient, low-maintenance pallet warehouse that can be used both in new buildings and as a retrofit solution in existing warehouses. Ideal for high-bay warehouses in silo design that require maximum efficiency, density and performance.
Advantages at a glance
- high throughput thanks to parallel storage and retrieval on up to 20 levels
- maximum space utilization thanks to multi-deep storage without aisles
- energy efficiency thanks to cable-connected pallet shuttles
- flexible pallet handling for different formats and mixed pallets
- low maintenance requirements thanks to robust standard components
- 24/7 operation even under demanding conditions, e.g. in deep-freeze areas
- redundant system structure for reliable operation even in the event of malfunctions
- modularly expandable for growing storage requirements
- precise control with millimetre-accurate positioning and continuous stocktaking
We would be happy to advise you on integrating truck shuttles into your warehouse concept.
